| DRM - Reception logs | Making some tests today... |
Testing
IBM THINKPAD 570E + SONY ICF2001D or SANGEAN ATS909
Today's
findings:
-
Use the external antenna with coaxial cable
for Sony or Sangean.
-
Do not use Sangean's power supply; prefer batteries.
-
Always position PC charger on the side opposite to the
receiver.
-
Avoid using another computer in the room...
-
For a demo (...), operate computer on its battery
(well for the time if will last)
-
Otherwise, start with charger and fully charged battery
(charger is noisier if battery is discharged)
-
Well with the above, the Sony ICF2001D and the Sangean ATS909
can give some good results when signals are strong.
Today's tests:
New
: Using external antenna (2x 7m dipole)
with
coaxial cable ended with metal jack
connected
directly to the Sony or Sangean.
Results
are much better than previously.
Note
about Sangean ATS909: I always have to
key
Freq + 5kHz to have correct freq. Ie to
listen
to 6095, Sangean display has to show 6100.
Don't
know why.
08H37:
Using SONY. PC charger is ON.
Signal
S9
>>>>
DRMSoftwareRadio-MERLIN-00000127
Software
Version 2.0.34
Starttime
(UTC) 2004-02-08 08:37:01
Frequency
6095 kHz
Latitude
44°49'N
Longitude
0°38'W
Label
RTL DRM
Bitrate
20.88 kbps
Mode
B
Bandwidth
10 kHz
Comment
Thinkpad+ICF2001D+Ext Ant
MINUTE
SNR SYNC AUDIO
TYPE
0000 20 148
1510/10 0
0001 20 148
1470/10 0
0002 20 150

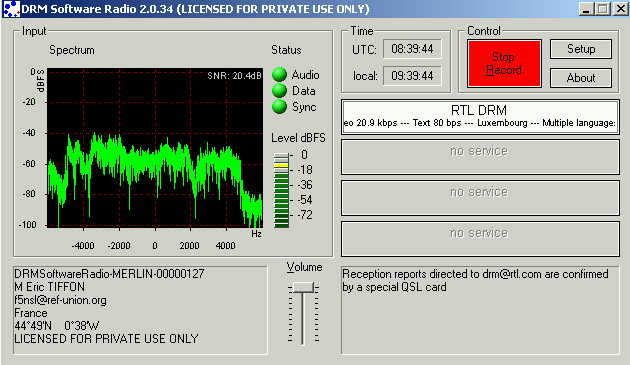

1460/10 0 PHOTO
8H39
0003 20 149
1500/10 0
0004 20 150
1490/10 0
0005 20 149
1490/10 0
0006 20 147
1460/10 0
8h44: closing the LCD screen: (little impact)
0007 20 150
1480/10 0
0008 21 149
1500/10 0
0009 20 150
1500/10 0
0010 21 150
1500/10 0
0011 19 149
1470/10 0
0012 20 150
1500/10 0
0013 20 149
1470/10 0
0014 20 149
1500/10 0
0015 21 150
1500/10 0
0016 21 150
1450/10 0
0017 19 148
1400/10 0
0018 20 149
1450/10 0
0019 20 148
1500/10 0
0020 20 148
1430/10 0
0021 21 150
1460/10 0
0022 20 149
1420/10 0
0023 20 149
1370/10 0
0024 21 150
1500/10 0
0025 21 150
1500/10 0
0026 20 150
1420/10 0
0027 18 150
1420/10 0
0028 18 149
1180/10 0
0029 18 150
970/10 0
SNR min: 15.6, max: 22.2
CRC:
0xffa2
<<<<
09H09:
Now using SANGEAN :
PC
charger is ON.
>>>>
DRMSoftwareRadio-MERLIN-00000127
Software
Version 2.0.34
Starttime
(UTC) 2004-02-08 09:09:31
Frequency
6095 kHz
Latitude
44°49'N
Longitude
0°38'W
Label
RTL DRM
Bitrate
20.88 kbps
Mode
B
Bandwidth
10 kHz
Comment
Thinkpad+ATS909+Ext Ant
MINUTE
SNR SYNC AUDIO
TYPE
0000 20 149
1420/10 0
0001 19 149
1150/10 0
0002 18 148
970/10 0
0003 18 150
1300/10 0
0004 20 148
1460/10 0
0005 19 149
1390/10 0
0006 21 150
1500/10 0
Closing the LCD screen:
0007 21 150
1500/10 0
0008 21 150
1500/10 0
0009 22 149
1500/10 0
0010 22 150
1500/10 0
0011 23 150
1500/10 0
0012 21 150
1470/10 0
0013 19 149
1140/10 0
0014 20 150
1360/10 0
Now
switching power/charger OFF
SNR
increase to 22/23 dB !
0015 23 149
1450/10 0
0016 24 149

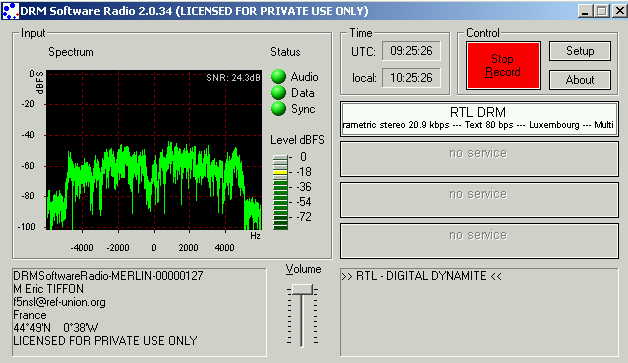

1460/10 0 PHOTO
9H25
0017 25 149
1500/10 0
0018 25 150
1500/10 0
0019 24 150
1400/10 0
0020 24 149
1440/10 0
SNR min: 14.4, max: 25.2
CRC:
0xf10b
<<<<
09H37:
Now using SONY on 21675kHz (11.5kbps, AAC Mono)
charger
is OFF. Signal S4/S5 only, too low.
>>>>
DRMSoftwareRadio-MERLIN-00000127
Software
Version 2.0.34
Starttime
(UTC) 2004-02-08 09:37:00
Frequency
21675 kHz
Latitude
44°49'N
Longitude
0°38'W
Label
DW DRM
Bitrate
11.48 kbps
Mode
B
Bandwidth
10 kHz
Comment
Thinkpad+ICF2001D+Ext Ant
MINUTE
SNR SYNC AUDIO
TYPE
0000 9 149
220/05 0
0001 7 92
45/05 0
0002 7 92
145/05 0
0003 8 133
260/05 0
0004 9 148
255/05 0
0005 9 148
290/05 0
0006 9 150
315/05 0
SNR min: 0.0, max: 11.3
CRC:
0x398b
<<<<
09H45
: 9850 FEBA (14.5kbps AAC mono, Flevo)
Using
SONY, Charger is OFF. Signal S8.
Perfect
Signal!
>>>>
DRMSoftwareRadio-MERLIN-00000127
Software
Version 2.0.34
Starttime
(UTC) 2004-02-08 09:45:00
Frequency
9850 kHz
Latitude
44°49'N
Longitude
0°38'W
Label
Bouquet Flevo NL
Bitrate
14.48 kbps
Mode
B
Bandwidth
10 kHz
Comment
Thinkpad+ICF2001D+Ext Ant
MINUTE
SNR SYNC AUDIO
TYPE
0000 24 150
1500/10 0
0001 24 150
1500/10 0 PHOTO
9H46
0002 25 149
1500/10 0
0003 24 150
1500/10 0
0004 25 150
1500/10 0
9h50: switching charger ON : Still good !!
0005 24 150
1500/10 0
0006 25 150
1500/10 0
0007 25 150
1500/10 0
0008 24 147
1500/10 0
0009 25 150
1500/10 0
0010 24 149
1500/10 0
0011 24 150
1490/10 0
0012 25 150
1500/10 0
0013 25 151
1510/10 0
0014 24 150
1500/10 0
Shutting down LCD screen.
0015 24 150
1500/10 0
0016 25 150
1500/10 0
0017 25 150
1500/10 0
0018 25 150
1500/10 0
0019 24 150
1460/10 0
0020 24 150
1500/10 0
0021 25 150
1500/10 0
0022 24 150
1500/10 0
0023 24 141
1300/10 0
SNR min: 0.0, max: 25.8
CRC:
0x0765
<<<<
10H10:
NOW using SANGEAN. Charger is stll ON!
Good
results.
>>>>
DRMSoftwareRadio-MERLIN-00000127
Software
Version 2.0.34
Starttime
(UTC) 2004-02-08 10:10:30
Frequency
9850 kHz
Latitude
44°49'N
Longitude
0°38'W
Label
Bouquet Flevo NL
Bitrate
14.48 kbps
Mode
B
Bandwidth
10 kHz
Comment
Thinkpad+ATS909+Ext Ant
MINUTE
SNR SYNC AUDIO
TYPE
0000 25 150
1500/10 0
0001 25 150
1500/10 0
0002 25 150
1500/10 0
shutting down LCD screen:
0003 25 150
1400/10 0
0004 25 150
1500/10 0
0005 25 150
1500/10 0
0006 24 150
1500/10 0
0007 25 150
1500/10 0
0008 25 150
1500/10 0
0009 25 150
1500/10 0
0010 26 150
1500/10 0
0011 25 150
1500/10 0
0012 25 149
1450/10 0
SNR min: 22.8, max: 26.0
CRC:
0x9866
<<<<
10h26:
In spite of above good results, when changing
frequency,
I notice the noise caused by the charger
on
other channels...
10H27
: Trying KUWAIT 13620kz (13 kbps), still with SANGEAN.
Too
poor.
>>>>
DRMSoftwareRadio-MERLIN-00000127
Software
Version 2.0.34
Starttime
(UTC) 2004-02-08 10:26:32
Frequency
13620 kHz
Latitude
44°49'N
Longitude
0°38'W
Label
Bitrate
12.96 kbps
Mode
D
Bandwidth
10 kHz
Comment
Thinkpad+ATS909+Ext Ant
MINUTE
SNR SYNC AUDIO
TYPE
0000 15 150
0/00 0
0001 17 150
415/05 0 PHOTO
10H28
0002 18 150
310/05 0
0003 17 150
90/05 0
0004 16 150
5/05 0
0005 15 149
10/05 0
SNR min: 10.7, max: 20.5
CRC:
0xfccc
<<<<
10H35:
Trying the same with the SONY.
Still
problem. Noted some QRM on the freq.
>>>>
DRMSoftwareRadio-MERLIN-00000127
Software
Version 2.0.34
Starttime
(UTC) 2004-02-08 10:35:02
Frequency
13620 kHz
Latitude
44°49'N
Longitude
0°38'W
Label
Bitrate
12.96 kbps
Mode
D
Bandwidth
10 kHz
Comment
Thinkpad+SONY+Ext Ant
MINUTE
SNR SYNC AUDIO
TYPE
0000 14 150
5/05 0
0001 16 150
0/00 0
0002 15 110
0/00 0
0003 16 150
20/05 0
0004 14 150
0/00 0
SNR min: 0.0, max: 17.8
CRC:
0x51b7
<<<<
10H45:
Trying Juelich 6140 (AAC SBR Param Stereo 20.1kbps)
Using
SONY. PC Charger is OFF.
>>>>
DRMSoftwareRadio-MERLIN-00000127
Software
Version 2.0.34
Starttime
(UTC) 2004-02-08 10:45:20
Frequency
6140 kHz
Latitude
44°49'N
Longitude
0°38'W
Label
DW DRM
Bitrate
20.08 kbps
Mode
B
Bandwidth
10 kHz
Comment
Thinkpad+SONY+Ext Ant
MINUTE
SNR SYNC AUDIO
TYPE
0000 19 147
960/10 0
0001 14 149
450/10 0
0002 18 148
1120/10 0
0003 18 150
1020/10 0
0004 18 150
800/10 0
0005 19 149
1200/10 0
0006 20 150
950/10 0
0007 19 150
1250/10 0
0008 20 150
1150/10 0
0009 20 150
1260/10 0
0010 18 149
980/10 0
0011 19 150
1120/10 0
0012 19 148
1040/10 0
0013 19 150
1160/10 0
SNR min: 9.9, max: 22.2
CRC:
0x0af4
<<<<
11H01:
Now trying BBC 9410 (AAC SBR Mono 20.9kbps)
Using
SONY. PC Charger is OFF.
>>>>
DRMSoftwareRadio-MERLIN-00000127
Software
Version 2.0.34
Starttime
(UTC) 2004-02-08 11:01:00
Frequency
9410 kHz
Latitude
44°49'N
Longitude
0°38'W
Label
BBCWorld Service
Bitrate
20.88 kbps
Mode
B
Bandwidth
10 kHz
Comment
Thinkpad+SONY+Ext Ant
MINUTE
SNR SYNC AUDIO
TYPE
0000 23 150

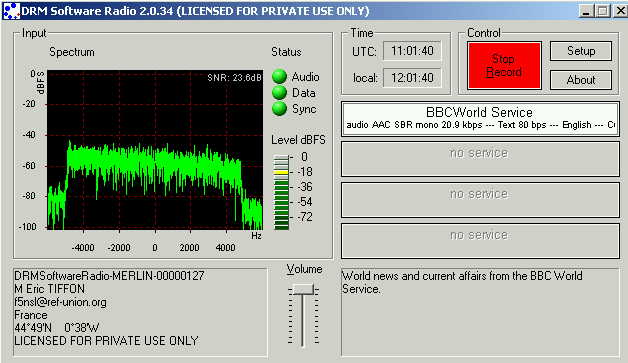

1500/10 0 PHOTO
11H01
0001 21 150
1410/10 0
0002 22 148
1460/10 0
0003 21 149
1250/10 0
Switching PC charger ON :
0004 18 149
1150/10 0
0005 18 150
1160/10 0
0006 21 150
1500/10 0
0007 20 150
1500/10 0
0008 21 149
1300/10 0
0009 17 150
960/10 0
0010 17 149
960/10 0
0011 15 147
660/10 0
0012 22 150
1410/10 0
0013 19 148
1050/10 0
0014 19 149
1020/10 0
0015 21 150
1500/10 0
0016 19 149
1380/10 0
0017 21 149
1500/10 0
0018 20 148
1450/10 0
0019 19 150
1280/10 0
0020 20 150
1260/10 0
0021 20 150
1390/10 0
0022 19 150
1450/10 0
0023 18 147
1070/10 0
SNR min: 11.2, max: 23.9
CRC:
0x7766
<<<<
11H27:
Now switching to SANGEAN.
PC
charger still ON.
>>>>
DRMSoftwareRadio-MERLIN-00000127
Software
Version 2.0.34
Starttime
(UTC) 2004-02-08 11:27:03
Frequency
9410 kHz
Latitude
44°49'N
Longitude
0°38'W
Label
BBCWorld Service
Bitrate
20.88 kbps
Mode
B
Bandwidth
10 kHz
Comment
Thinkpad+SANGEAN+Ext Ant
MINUTE
SNR SYNC AUDIO
TYPE
0000 20 148
1300/10 0
0001 20 149

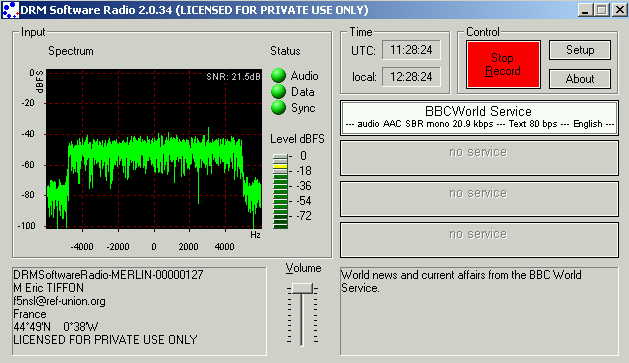

1440/10 0 PHOTO
11H28
0002 19 150
1450/10 0
0003 20 149
1360/10 0
0004 18 150
1490/10 0
0005 17 149
1440/10 0
0006 18 150
1460/10 0
0007 17 149
1100/10 0
0008 17 150
910/10 0
0009 17 147
1470/10 0
0010 18 150
1500/10 0
0011 17 148
1370/10 0
0012 18 150
1500/10 0
0013 18 150
1460/10 0
0014 17 149
1320/10 0
0015 17 149
1480/10 0
0016 18 150
1480/10 0
0017 18 150
1500/10 0
0018 18 150
1380/10 0
0019 17 148
1500/10 0
0020 18 148
1420/10 0
0021 17 149
1480/10 0
0022 17 149
1280/10 0
0023 19 150
1500/10 0
0024 17 150
1050/10 0
0025 18 150
1400/10 0
0026 17 150
1360/10 0
0027 16 149
930/10 0
0028 18 150
1500/10 0
0029 18 150
1450/10 0
0030 17 148
1400/10 0
0031 16 151
990/10 0
0032 16 148
840/10 0
0033 16 149
1070/10 0
0034 17 149
1350/10 0
0035 16 150
890/10 0
0036 17 149
1110/10 0
0037 17 146
1130/10 0
0038 16 149
990/10 0
0039 18 150
1370/10 0
0040 16 145
880/10 0
SNR min: 12.9, max: 22.9
CRC:
0x6812
<<<<
12H09:
Now trying DW-W 9655 kHz (AAC SBR Param Stereo 20.9)
Still
with Sangean, PC charger still ON.
Quite
good!
>>>>
DRMSoftwareRadio-MERLIN-00000127
Software
Version 2.0.34
Starttime
(UTC) 2004-02-08 12:09:05
Frequency
9655 kHz
Latitude
44°49'N
Longitude
0°38'W
Label
DW-Wertachtal
Bitrate
20.88 kbps
Mode
B
Bandwidth
10 kHz
Comment
Thinkpad+SANGEAN+Ext Ant
MINUTE
SNR SYNC AUDIO
TYPE
0000 18 150
1280/10 0
0001 19 150
1470/10 0
0002 19 150
1500/10 0
0003 19 150
1500/10 0
0004 19 150
1500/10 0
0005 19 150
1500/10 0
0006 19 150
1500/10 0
0007 19 150
1500/10 0
0008 19 150
1500/10 0
0009 19 150
1450/10 0
0010 19 150
1490/10 0
0011 19 150
1460/10 0
0012 19 149
1500/10 0
0013 19 151
1510/10 0
0014 19 150
1450/10 0
0015 19 150
1420/10 0
0016 19 150
1450/10 0
0017 19 150
1490/10 0
0018 19 150
1500/10 0
0019 19 150
1500/10 0
0020 19 150
1500/10 0
0021 19 150
1500/10 0
0022 19 150
1500/10 0
0023 19 150
1500/10 0
0024 19 149
1500/10 0
0025 19 150
1500/10 0
0026 19 150
1500/10 0
0027 19 150
1500/10 0
0028 19 150
1500/10 0
0029 19 150
1500/10 0
0030 19 150
1500/10 0
0031 19 149
1500/10 0
0032 19 150
1500/10 0
0033 19 150
1500/10 0
0034 19 150
1500/10 0
0035 19 149
1500/10 0
0036 19 150
1440/10 0
0037 19 150
1480/10 0
0038 19 150
1500/10 0
0039 19 150
1500/10 0
0040 19 150
1500/10 0
0041 19 150
1500/10 0
0042 19 151
1510/10 0
0043 19 150
1500/10 0
0044 19 150
1500/10 0
0045 19 150
1460/10 0
0046 19 150
1500/10 0
0047 19 150
1500/10 0
0048 19 150
1500/10 0
0049 19 150
1500/10 0
SNR min: 15.9, max: 19.3
CRC:
0x0518
<<<<
13H01:
Now trying 9565kHz (HCJB / NASB) (AAC SBR mono 20.9)
Signal
is too low.
>>>>
DRMSoftwareRadio-MERLIN-00000127
Software
Version 2.0.34
Starttime
(UTC) 2004-02-08 13:01:16
Frequency
9565 kHz
Latitude
44°49'N
Longitude
0°38'W
Label
HCJB/NASB
Bitrate
20.88 kbps
Mode
B
Bandwidth
10 kHz
Comment
Thinkpad+SANGEAN+Ext Ant
MINUTE
SNR SYNC AUDIO
TYPE
0000 13 148

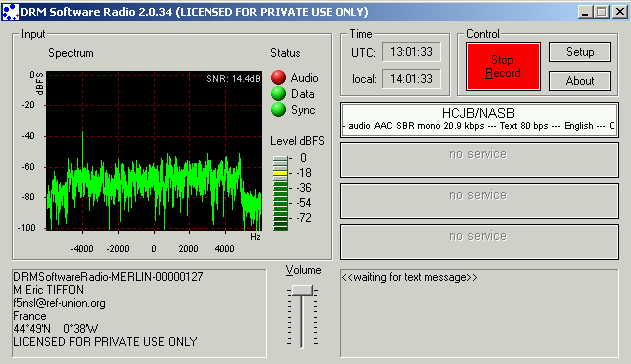

0/00 0 PHOTO
13H01
0001 11 147
0/00 0
0002 11 148
0/00 0
0003 13 149
0/00 0
0004 10 148
0/00 0
13H06
: Switching PC charger OFF, just to see.
Little
impact.
0005 14 144
0/00 0
0006 14 149
0/00 0
0007 13 148
0/00 0
0008 12 150
0/00 0
0009 11 147
0/00 0
0010 12 145
0/00 0
0011 11 147
0/00 0
0012 10 122
0/00 0
0013 13 147
0/00 0
0014 12 150
0/00 0
0015 12 149
0/00 0
0016 13 147
0/00 0
0017 14 148
40/10 0
0018 14 148
40/10 0
0019 13 144
0/00 0
13H21 PC charger now ON. :
0020 10 142
0/00 0
0021 9 145
0/00 0
SNR min: 0.0, max: 15.9
CRC:
0xd264
<<<<
13H24
: Now bach on 9815 (AAC mono 14.5kbps)
Still
with SANGEAN. Charger is ON.
quite
good.
>>>>
DRMSoftwareRadio-MERLIN-00000127
Software
Version 2.0.34
Starttime
(UTC) 2004-02-08 13:24:32
Frequency
9815 kHz
Latitude
44°49'N
Longitude
0°38'W
Label
Bouquet Flevo NL
Bitrate
14.48 kbps
Mode
B
Bandwidth
10 kHz
Comment
Thinkpad+SANGEAN+Ext Ant
MINUTE
SNR SYNC AUDIO
TYPE
0000 19 150
1490/10 0
0001 19 150
1470/10 0
0002 19 147
1500/10 0
0003 19 149
1500/10 0
0004 19 150
1500/10 0
0005 19 149
1500/10 0
0006 19 150
1500/10 0
0007 19 150
1500/10 0
0008 19 150
1370/10 0
0009 19 150
1500/10 0
0010 19 149
1500/10 0
0011 19 150
1500/10 0
0012 19 150
1500/10 0
0013 20 150
1500/10 0
0014 19 150
1500/10 0
0015 18 150
1150/10 0
0016 19 150
1490/10 0
0017 19 150
1500/10 0
0018 20 150
1500/10 0
0019 20 150
1500/10 0
0020 19 150
1500/10 0
0021 19 149
1430/10 0
SNR min: 11.6, max: 19.9
CRC:
0x6c84
<<<<
16H42:
Trying DW-W 3995, using SANGEAN.
PC
Charger is OFF
>>>>
DRMSoftwareRadio-MERLIN-00000127
Software
Version 2.0.34
Starttime
(UTC) 2004-02-08 16:42:16
Frequency
3995 kHz
Latitude
44°49'N
Longitude
0°38'W
Label
DW-Wertachtal
Bitrate
20.88 kbps
Mode
B
Bandwidth
10 kHz
Comment
Thinkpad+SANGEAN+Ext Ant
MINUTE
SNR SYNC AUDIO
TYPE
0000 18 148
950/10 0
0001 19 149
1500/10 0
0002 18 150
1320/10 0
0003 17 148
1110/10 0
0004 17 149
1150/10 0
0005 18 150
1470/10 0
0006 18 150
1500/10 0
0007 19 150
1500/10 0
0008 18 151
1480/10 0
0009 19 150
1500/10 0
0010 19 150
1490/10 0
0011 18 149
1290/10 0
0012 18 150
1370/10 0
0013 18 149
1330/10 0
0014 17 149
1110/10 0
0015 17 148
1210/10 0
0016 17 150
1300/10 0
0017 17 141
1210/10 0
0018 18 149
1460/10 0
0019 18 150
1450/10 0
0020 17 148
880/10 0
0021 17 149
1060/10 0
0022 18 150
1270/10 0
0023 18 149
1410/10 0
0024 17 150
1240/10 0
0025 17 150
1450/10 0
17h07: Charger now ON:
0026 18 149
1500/10 0
0027 18 150
1410/10 0
0028 18 149
1220/10 0
0029 18 149
1500/10 0
0030 18 149
1490/10 0
0031 18 150
1420/10 0
0032 18 150
1500/10 0
0033 17 148
1370/10 0
0034 18 147
1500/10 0
From
here I am using another computer in the
same
room...
0035 16 148
820/10 0
0036 16 149
750/10 0
0037 15 149
40/10 0
0038 14 147
40/10 0
0039 15 149
200/10 0
0040 14 147
40/10 0
0041 15 149
140/10 0
0042 16 148
840/10 0
0043 15 149
410/10 0
0044 15 151
460/10 0
0045 17 150
1120/10 0
0046 16 106
840/10 0
SNR min: 0.0, max: 19.3
CRC:
0x1c19
<<<<
17H31:
Moscow testing on 9487 kHz. (AAC mono 15.1kbps)
Using
Sangean. Charger is ON.
Rem:
Still using another computer in the same room...
>>>>
DRMSoftwareRadio-MERLIN-00000127
Software
Version 2.0.34
Starttime
(UTC) 2004-02-08 17:31:00
Frequency
9490 kHz
Latitude
44°49'N
Longitude
0°38'W
Label
Voice of Russia
Bitrate
15.10 kbps
Mode
B
Bandwidth
9 kHz
Comment
Thinkpad+SANGEAN+Ext Ant
MINUTE
SNR SYNC AUDIO
TYPE
0000 20 150
1370/10 0
0001 19 150
1330/10 0
0002 20 150
1500/10 0
0003 19 150
1430/10 0
0004 19 150
1500/10 0
0005 18 150
1390/10 0
0006 19 150
1440/10 0
0007 19 150
1430/10 0
0008 19 150
1360/10 0
0009 20 150
1500/10 0
0010 19 150
1470/10 0
0011 19 149
1430/10 0
0012 19 150
1430/10 0
0013 19 150
1460/10 0
0014 19 150
1380/10 0
0015 18 150
1310/10 0
0016 18 150
1380/10 0
0017 19 150
1490/10 0
0018 20 149
1500/10 0
0019 20 150
1500/10 0
0020 20 150
1500/10 0
0021 20 150
1500/10 0
0022 19 150
1500/10 0
0023 19 150
1460/10 0
0024 18 150
1460/10 0
0025 16 149
1350/10 0
0026 17 150
1310/10 0
0027 16 150

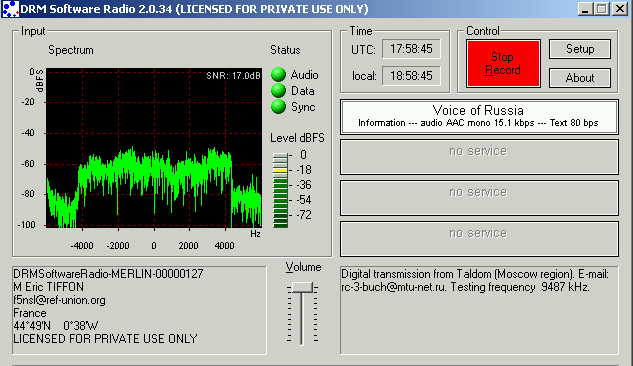

1080/10 0 PHOTO
17H58
0028 15 150
1040/10 0
SNR min: 0.0, max: 20.2
CRC:
0x4e56
<<<<
18H03:
Now trying DW 6140 (AAC SBR Param Stereo 20.1)
+
Multimedia (Journaline news service).
Noted
some QRM.
>>>>
DRMSoftwareRadio-MERLIN-00000127
Software
Version 2.0.34
Starttime
(UTC) 2004-02-08 18:03:04
Frequency
6140 kHz
Latitude
44°49'N
Longitude
0°38'W
Label
DW DRM
Bitrate
20.08 kbps
Mode
B
Bandwidth
10 kHz
Comment
Thinkpad+SANGEAN+Ext Ant
MINUTE
SNR SYNC AUDIO
TYPE
0000 15 149
350/10 0
0001 15 149
570/10 0
0002 16 150
530/10 0
0003 15 150
320/10 0
0004 16 150
390/10 0
0005 18 150
860/10 0
0006 18 150
810/10 0
0007 17 150
850/10 0
0008 15 143
580/10 0
0009 17 150
1100/10 0
0010 15 150
680/10 0
0011 16 150
510/10 0
0012 14 150
570/10 0
0013 11 132
360/10 0
0014 15 140
630/10 0
0015 18 150
1000/10 0
0016 17 150
830/10 0
0017 15 150
640/10 0
0018 16 150
930/10 0
0019 16 150
770/10 0
0020 15 150
640/10 0
0021 15 150
710/10 0
0022 15 150
740/10 0
0023 13 150
470/10 0
0024 14 150
230/10 0
0025 14 149
280/10 0
0026 18 150
1290/10 0
0027 17 150
810/10 0
0028 17 150
870/10 0
0029 18 150
1460/10 0
0030 18 150
1120/10 0
0031 17 150
890/10 0
0032 15 150
390/10 0
0033 16 150
750/10 0
0034 13 150
270/10 0
0035 17 150
910/10 0
0036 18 150
1080/10 0
0037 18 150
1290/10 0
0038 18 150
1050/10 0
0039 16 150
410/10 0
0040 15 150
430/10 0
0041 16 140
410/10 0
0042 14 150
110/10 0
0043 15 150
100/10 0
Switching
off the other computer I was using in
the
same room...
0044 15 150
270/10 0
0045 21 150
760/10 0
18H48:
Switching off Charger as well as the
Sangean
own supply
SNR
rises to 24 !!
0046 24 150
1390/10 0
0047 23 150

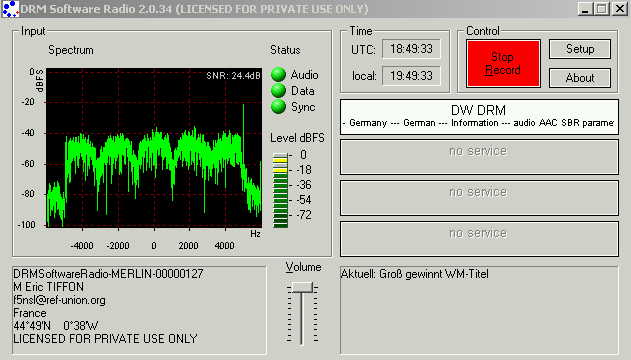

1400/10 0 PHOTO
18H49
0048 23 150
1210/10 0
0049 20 150
1040/10 0
0050 24 150
1320/10 0
0051 23 142
1320/10 0
SNR min: 0.0, max: 25.3
CRC:
0x1938
<<<<
Notes:
18H52:
switching on the Sangean's mains supply
SNR
down to 18
18H53
: removing it
SNR
back to 24/25
18H54
: PC charger ON
SNR
still 23dB
=====
======================================
Thinkpad Computer=
IBM Thinkpad 570E, P2 500 MHz, Win2000, 196 Mo.
Built-in sound card by "Crystal Sound Fusion"
Mixer=
SAT-Service crystal mixer 467kHz outside the rx
with a 9v battery,
Sony ICF 2001D=
Direct pickup point as indicated by LA6XJ in DRMRX forum
(pin 7 of IC1 - Photos posted by LA6XJ: ph1,
ph2, ph3)
ANT=outside dipode 2x 7meters + coxial feeder
Sangean ATS909=
Direct pickup point
ANT=outside dipode 2x 7meters + coxial feeder
| F5NSL's page |
