DRM - Reception logs F5NSL
Date:   Sat 27 March 2004

Testing portable conditions:
IBM THINKPAD 570E  +  SANGEAN ATS909

Station : biteXpress, Erlangen
Time : 11H19
Freq :  15896 kHz,  0.03 kW  (?)
Mode: AAC SBR Param Stereo 27.2kbps + multimedia 4.1kbps


Remarks:
 Just managed to catch this for the first time (to weak, some QSB)
Sangean ATS909 with insulation transformer
.
>>>>

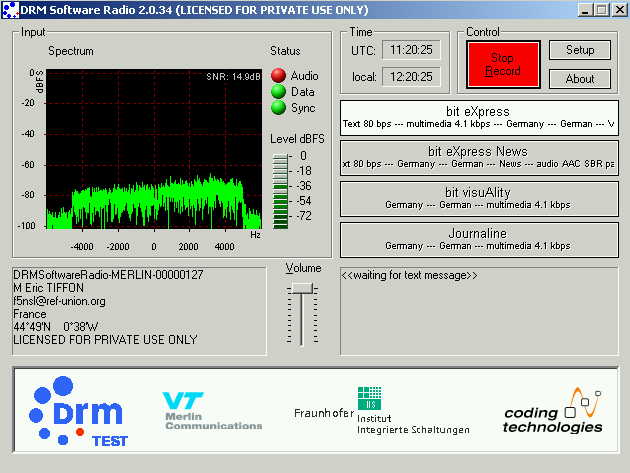

DRMSoftwareRadio-MERLIN-00000127
Software Version 2.0.34
Starttime (UTC)  2004-03-27 11:19:24
Frequency        15896 kHz
Latitude         44°49'N
Longitude         0°38'W
Label            bit eXpress
Bitrate          27.20 kbps
Mode             A
Bandwidth        10 kHz
Comment          Thinkpad+ATS909+dip 2x7m

MINUTE  SNR      SYNC     AUDIO     TYPE
  0000   11       117      0/00        0
  0001   14       128      0/00        0  PHOTO
  0002    8       142      0/00        0
  0003    8       136      0/00        0
  0004    8       107      0/00        0
  0005   12       116      0/00        0
  0006   10       150      0/00        0
  0007   10       137      0/00        0
  0008    8       109      0/00        0
  0009    5        27      0/00        0
  0010    9        89      0/00        0
  0011   10       115      0/00        0

SNR min: 0.0, max: 16.9

CRC: 0xb452
<<<<

======================================
Thinkpad Computer=
IBM Thinkpad 570E, P2 500 MHz, Win2000, 196 Mo.
Built-in sound card by "Crystal Sound Fusion"

Mixer=
SAT-Service crystal mixer 467kHz outside the rx
with a 9v battery,

Sony ICF 2001D=
Direct pickup point as indicated by LA6XJ in DRMRX forum
(pin 7 of IC1 - Photos posted by LA6XJ: ph1,  ph2,  ph3)
ANT=outside dipode 2x 7meters + coxial feeder

Sangean ATS909=
Direct pickup point - See HERE
ANT=outside dipode 2x 7meters + coxial feeder
