IBM THINKPAD 570E + SANGEAN ATS909
ANT : Dipole 2x 7m - Sangean on its batteries
Station : TDP Radio
Time : 15H00-16H00
Freq : 6015 kHz, 40kW , Juelich
Mode: AAC SBR param stereo 20.9 kbps

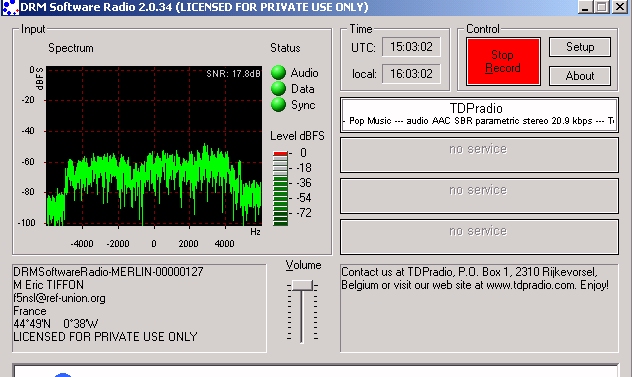

*** PHOTO ***
>>>>
DRMSoftwareRadio-MERLIN-00000127
Software
Version 2.0.34
Starttime
(UTC) 2004-11-06 15:00:00
Frequency
6015 kHz
Latitude
44°49'N
Longitude
0°38'W
Label
TDPradio
Bitrate
20.88 kbps
Mode
B
Bandwidth
10 kHz
Comment
ATS909+dipole2x7m+Thinkpad
MINUTE
SNR SYNC AUDIO
TYPE
0000 19 150
1500/10 0
0001 19 150
1170/10 0
0002 18 150
1270/10 0
0003 18 149
1190/10 0
0004 16 150
840/10 0
0005 18 150
1420/10 0
0006 18 149
1280/10 0
0007 16 149
750/10 0
0008 18 149
1100/10 0
0009 18 149
1290/10 0
0010 19 150
1370/10 0
0011 19 149
1500/10 0
0012 19 149
1480/10 0
0013 17 149
940/10 0
0014 17 149
1100/10 0
0015 17 150
1360/10 0
0016 18 149
1430/10 0
0017 17 150
1410/10 0
0018 18 149
1280/10 0
0019 17 149
940/10 0
0020 18 150
1370/10 0
0021 19 149
1490/10 0
0022 19 149
1500/10 0
0023 19 148
1450/10 0
0024 18 147
1140/10 0
0025 19 150
1500/10 0
0026 20 150
1500/10 0
0027 19 150
1490/10 0
0028 20 151
1500/10 0
0029 19 149
1470/10 0
0030 19 150
1500/10 0
0031 19 149
1370/10 0
0032 18 149
1500/10 0
0033 19 149
1500/10 0
0034 19 149
1400/10 0
0035 19 150
1500/10 0
0036 18 150
1320/10 0
0037 19 149
1470/10 0
0038 19 149
1490/10 0
0039 19 150
1290/10 0
0040 19 150
1400/10 0
0041 19 149
1500/10 0
0042 19 150
1470/10 0
0043 20 150
1500/10 0
0044 20 150
1500/10 0
0045 18 149
1360/10 0
0046 19 150
1500/10 0
0047 19 149
1470/10 0
0048 18 149
1480/10 0
0049 17 148
1080/10 0
0050 18 149
1360/10 0
0051 18 150
1490/10 0
0052 19 149
1500/10 0
0053 18 150
1500/10 0
0054 19 150
1490/10 0
0055 19 149
1410/10 0
0056 19 150
1460/10 0
0057 19 150
1500/10 0
0058 18 142
1160/10 0
0059 0
0 0/00
0
0060 0
0 0/00
0
0061 0
0 0/00
0
0062 0
0 0/00
0
0063 0
0 0/00
0
0064 0
0 0/00
0
0065 0
0 0/00
0
0066 0
0 0/00
0
0067 0
0 0/00
0
0068 0
0 0/00
0
0069 0
1 0/00
0
SNR min: 0.0, max: 20.7
CRC:
0x7360
<<<<
======================================
Thinkpad Computer=
IBM Thinkpad 570E, P2 500 MHz, Win2000, 196 Mo.
Built-in sound card by "Crystal Sound Fusion"
Mixer=
SAT-Service crystal mixer 467kHz outside the rx
with a 9v battery,
Sony ICF 2001D=
Direct pickup point as indicated by LA6XJ in DRMRX forum
(pin 7 of IC1 - Photos posted by LA6XJ: ph1,
ph2, ph3)
ANT=outside dipode 2x 7meters + coaxial feeder
Sangean ATS909=
Direct pickup point - See HERE
ANT=outside dipode 2x 7meters + coaxial feeder
